CAR SCREW KIT 10''L 1.58''OD ALUMINUM 7075 MODULAR SOLVENT TRAP 1/2-28 OR 5/8X24 + DRILL JIG 1.375X24 FIXTURE GUIDE

Sale price$169.99 Regular price$249.99
Save $80.00
Style:1/2-28 Solvent Trap + Drilling Jig 1.375x24
Quantity:

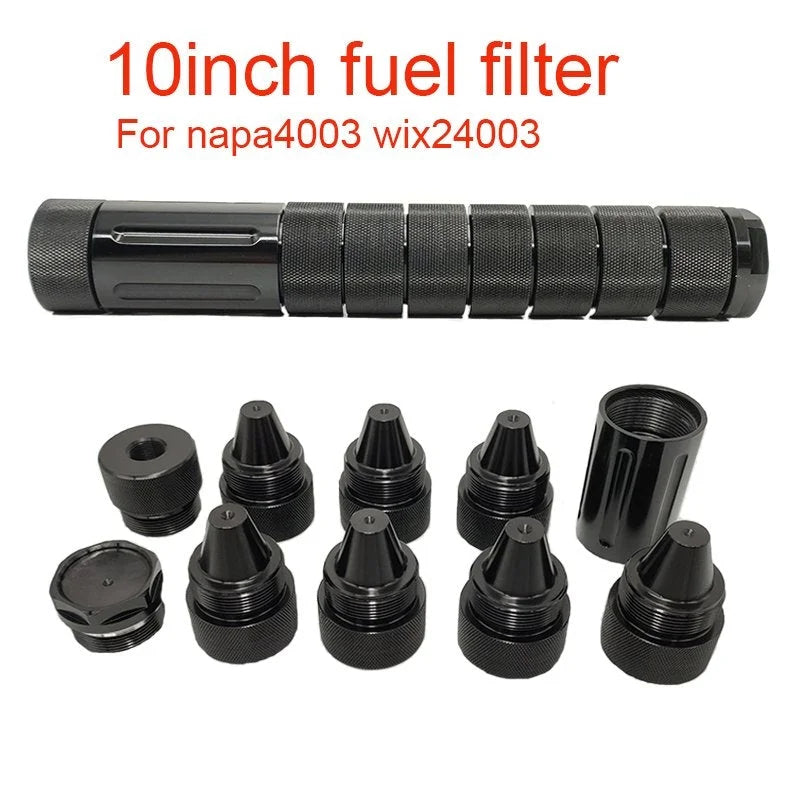

Application 1: For napa 4003 oil filter

Application 2: For napa 4003 wix 24003 fuel trap solvent filter

Features 1: For Napa Filter

Features 2: Solvent Trap

Material Type: Aluminum

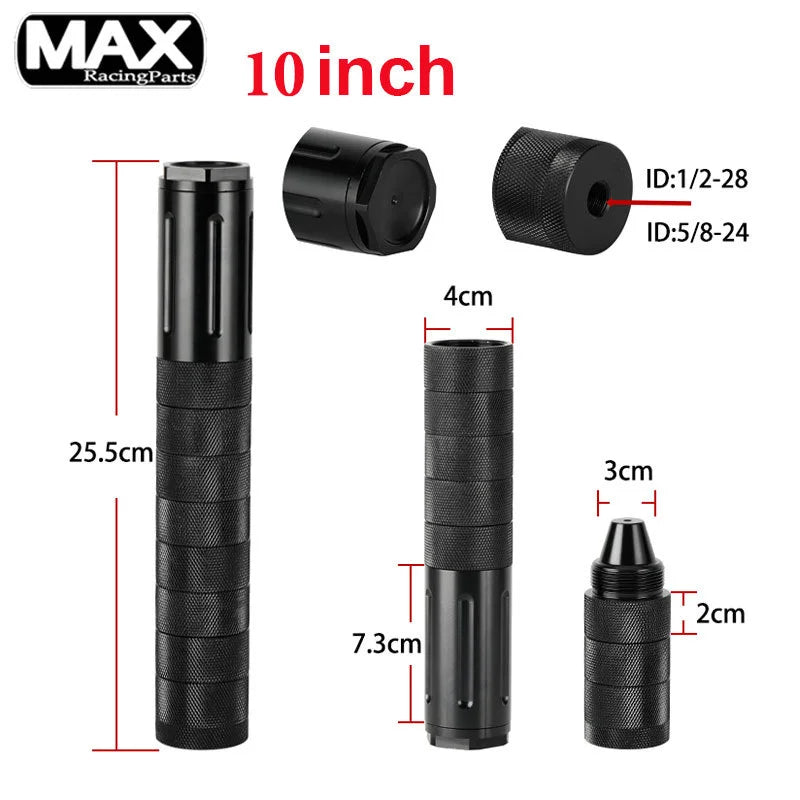

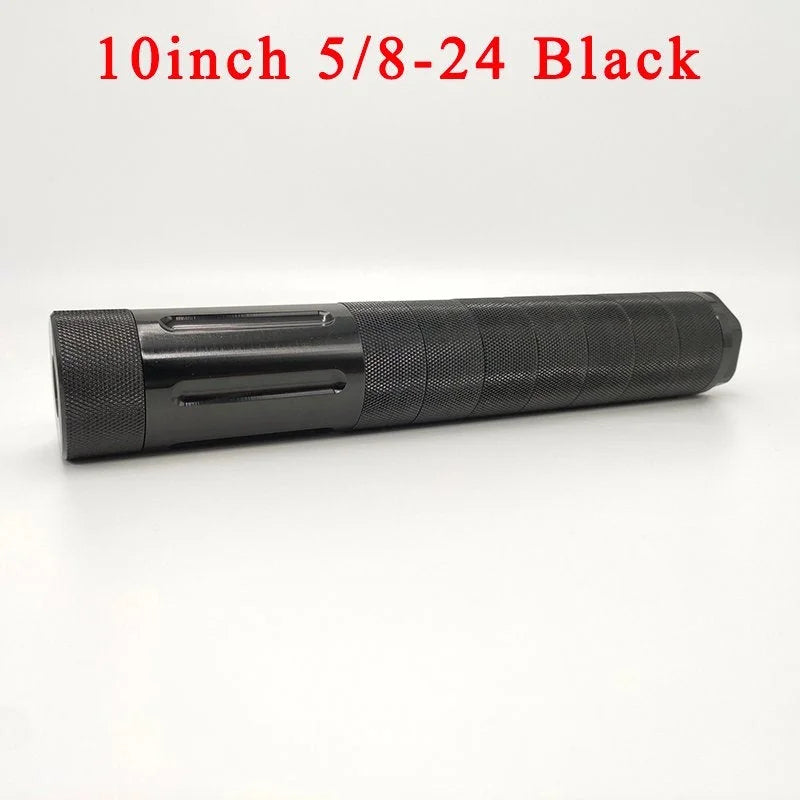

Modular Solvent Trap kit features 60-degree cups for unparalleled performance, as well as an included thread mount, tube and end cap.
In its longest configuration, this solvent trap is 9.25 inches long.

Specification:
Longest Length: 10"
Build Materials: Aluminum
Finish: Hard Anodize
Thread Mounts: 5/8x24 or 1/2x28

Note:
1.Actual color maybe slightly different from the image due to different monitor displays and light shooting effect.
2.Please allow +/- 1-3mm deviation due to manual measurement.

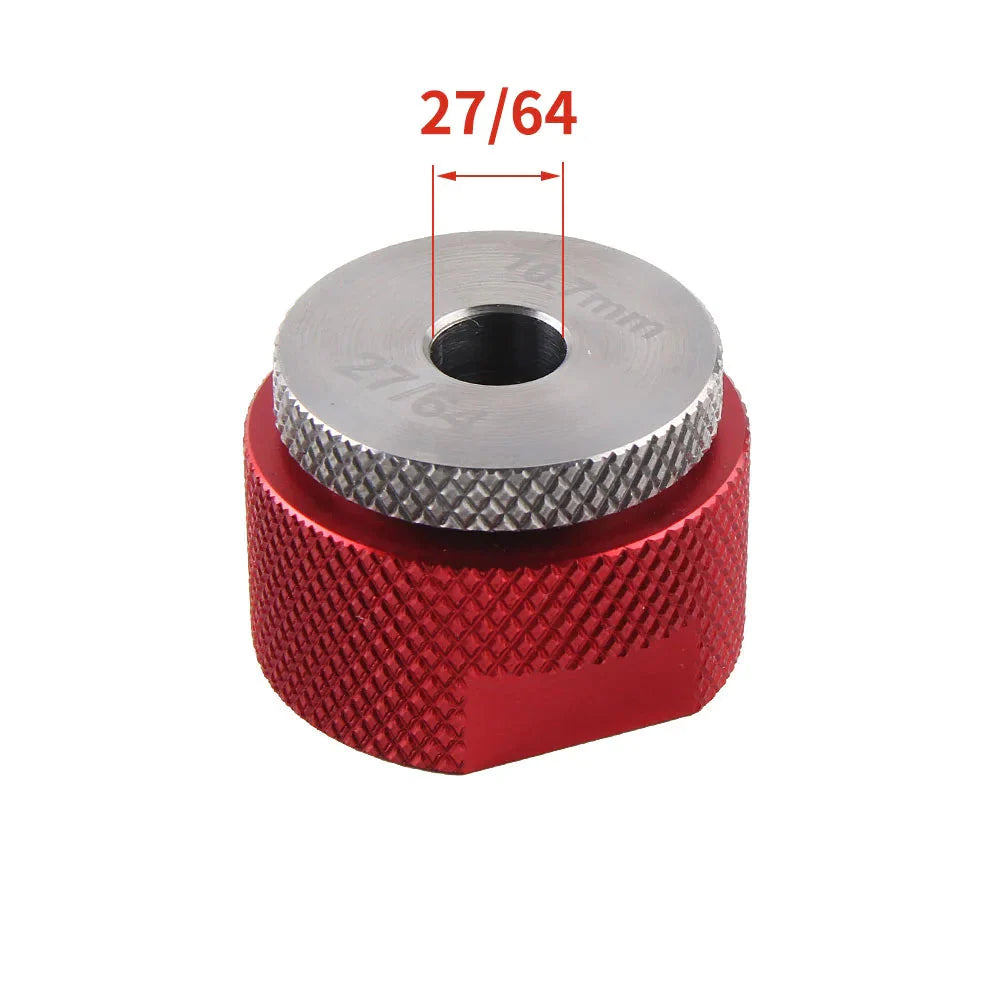

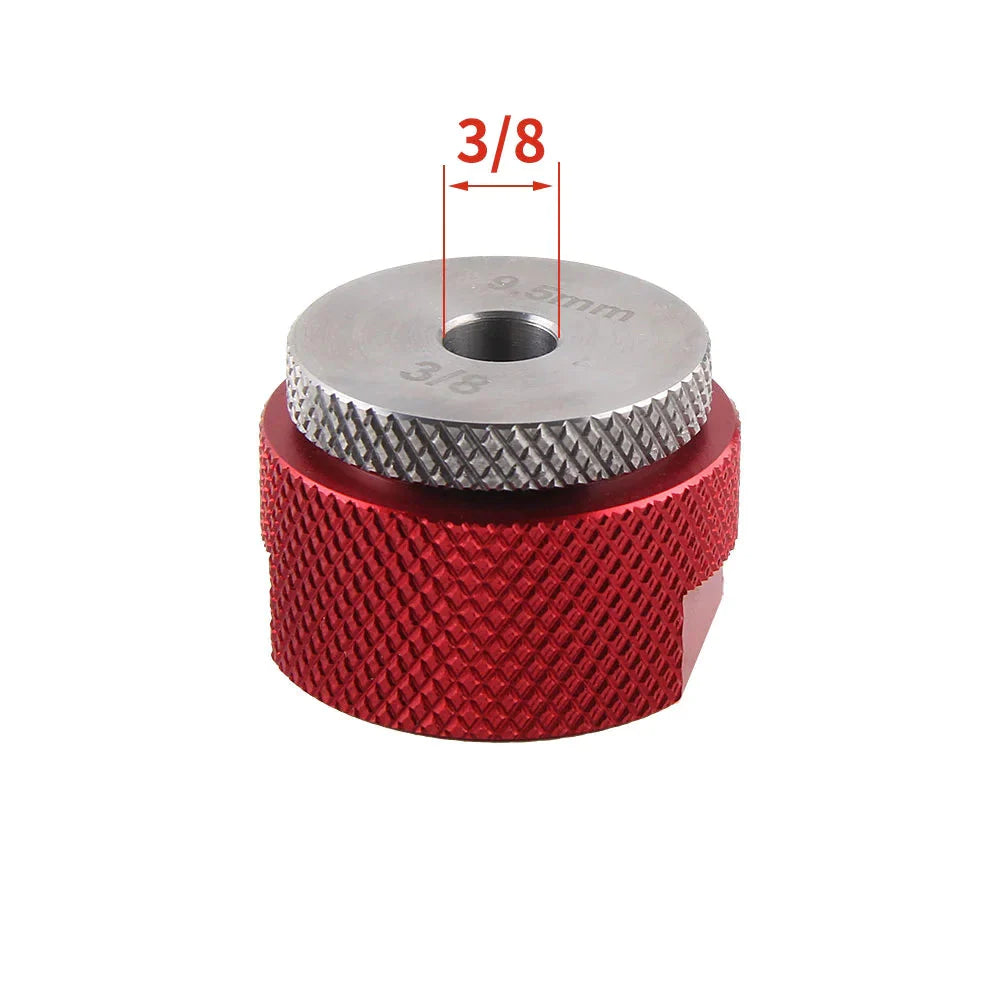

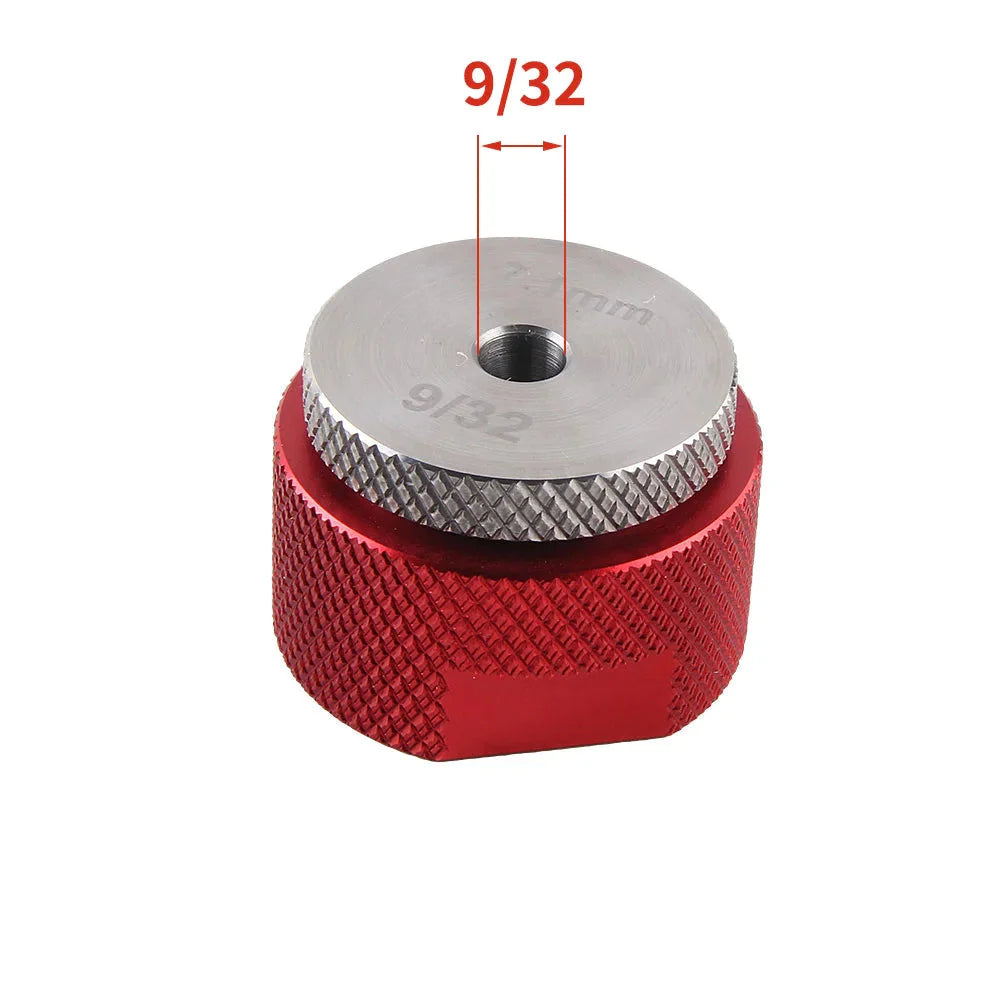

Drilling Jig For Solvent Trap.

Material:
7075 aluminum and stainless less

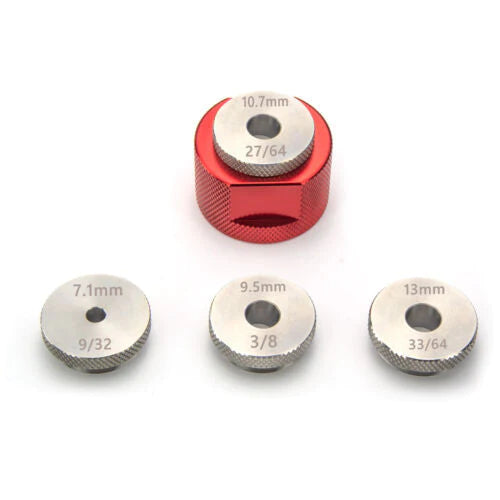

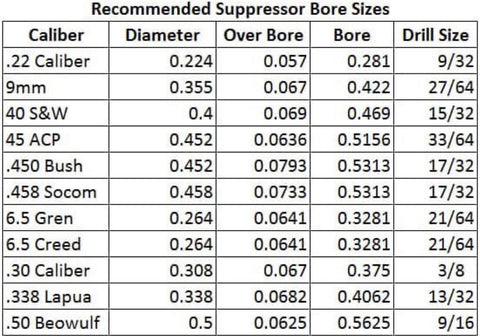

Diameter of center hole: fits .22 to .45

Note:
The true diameter of the hole is in millimeters rather than inches.

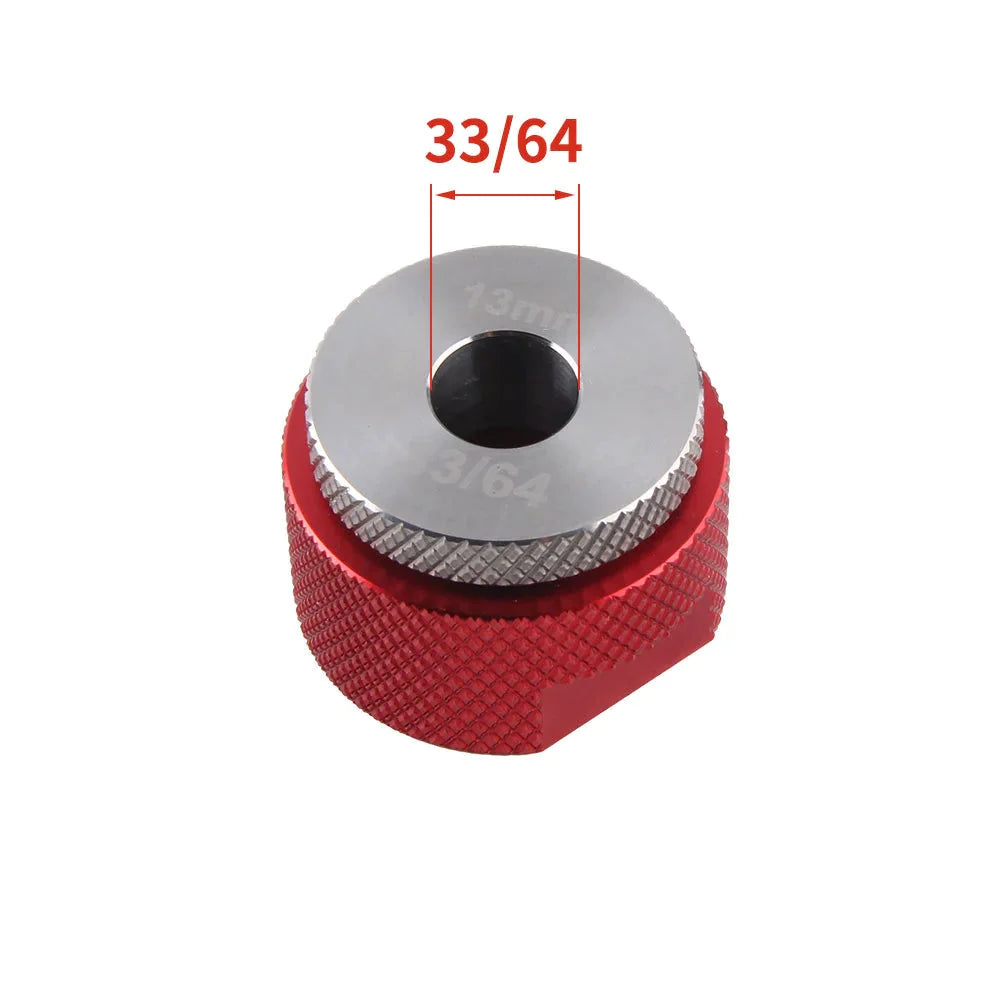

For example 13mm and 33/64" = 13.096875mm
The actual 13mm hole is slightly smaller than 33/64" in diameter

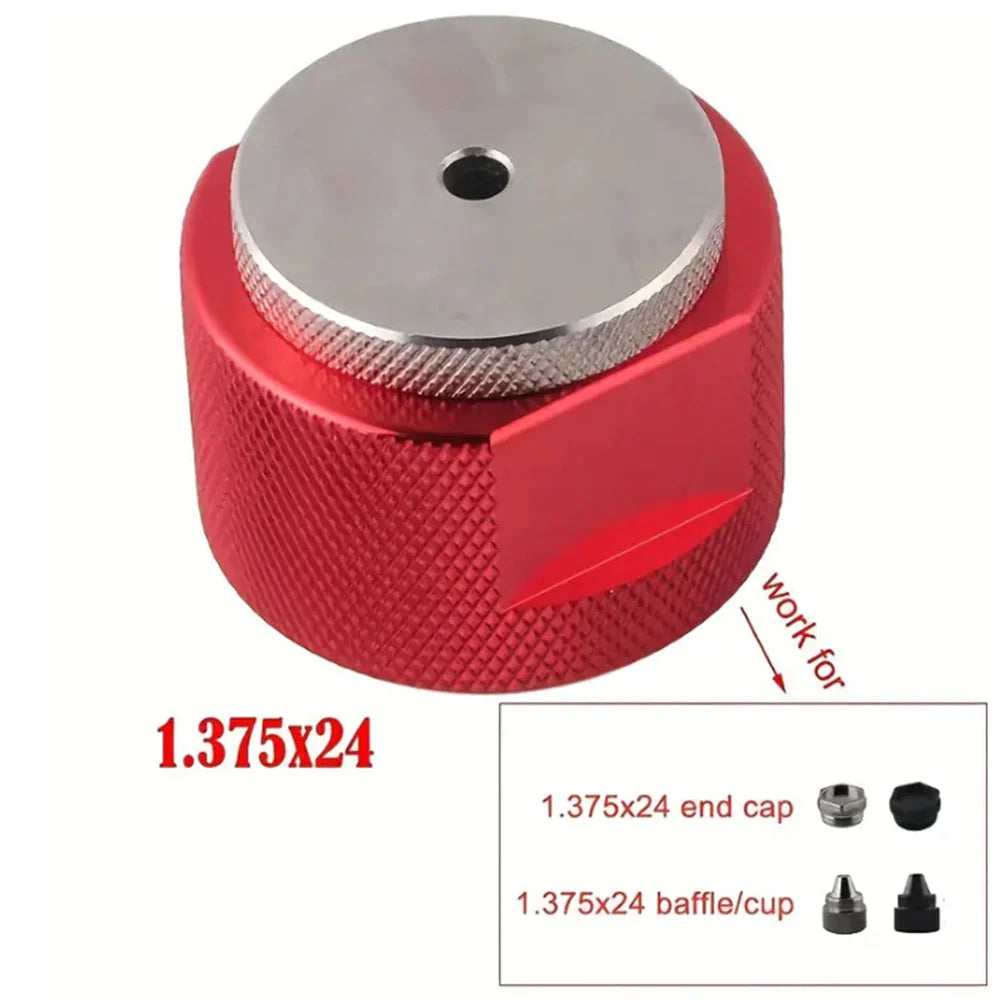

Drilling Jig for 1.375x24 Cup

Package Included:

show as picture
1x Thread mount
1X Tube
1x End Caps ( 1/2''x28 or 5/8x24 )
7x Cone Cups

1 x aluminum top fixture
4 x stainless lessBottom Cap
